Reading your own data#
1. Epoched data with MNE (recommended)#
Starting from epoched data is the recommended method as the internal functions in hmp to epoch data (see next section) might not be suitable for your specific experiment. Note that this method assumes that your epoch contain both the starting (stimulus) and ending (response) event of your trials!
An HMP model works on a single trial basis. A trial is defined as the onset of a stimulus and the time at which the response was provided (reaction time, RT). Now, to restrict the analyzed data to this duration we need to pass the information of the trial RT along the time-series we are using (e.g. EEG/MEG channels). The easiest way of doing this is to rely on triggers that were co-registered with the data and that signal useful events such as which stimulus was presented and which answer was given. In MNE this is done either by using events or by using so-called metadata (see MNE’s tutorial). In section 1.1 we explain how to prepare the data if you have metadata available, section 1.2 explains what to do if metadata is not integrated in your epoched dataset.
NOTE if you want to run these examples you need to first download the data:
[1]:
import os
import requests
from mne.io import read_info
# Declaring path where the EEG data will be stored
epoch_data_path = os.path.join('sample_data', 'eeg')
os.makedirs(epoch_data_path, exist_ok=True)
# URLs of the first 5 participants in the SAT experiment, navigate the osf folder and adapt those if you want to do this tutorial on other data (e.g. P3, N2pc)
file_urls = [
"https://osf.io/download/67cffa85f67af67e7a92f0a6/",
"https://osf.io/download/67cffa85f67af67e7a92f0a8/",
"https://osf.io/download/67cffa85f67af67e7a92f0aa/",
"https://osf.io/download/67cffa85f67af67e7a92f0ac/",
"https://osf.io/download/67cffa85f67af67e7a92f0ae/",
]
# Download and save each file if not already in folder
for i, url in enumerate(file_urls, start=1):
file_path = os.path.join(epoch_data_path, f'participant{i}_epo.fif')
if not os.path.exists(file_path):
response = requests.get(url)
with open(file_path, 'wb') as f:
f.write(response.content)
1.1 Example with metadata#
For this section we will rely on data we will use the data from application 2 of this this paper. For the purpose of this tutorial we will only use the first 5 participants of the data (see the HMP paper for the method and https://osf.io/29tgr/ for the whole (trial_data) data).
Important note Given that we are using the RT as a cutting point selecting appropriate trimming is very important. For example a typical perceptual decision making is unlikely to be made with RT shorter than 200 ms nor RT longer than 2 seconds. Therefore the next function uses lower_limit_RT=0.2 and upper_limit_RT=2 to apply these criteria.
1.1.1 Reading the data#
[2]:
import hmp
sfreq = 100 #at what sampling rate we want the data, downsampling to 100Hz is computationally less intensive for hmp instances
# Recovering individual files and participant names
subj_files = [os.path.join(epoch_data_path, f) for f in os.listdir(epoch_data_path) if f.endswith('.fif')] # Create a list of files with full paths
subj_names = [os.path.splitext(f)[0] for f in os.listdir(epoch_data_path) if f.endswith('.fif')] # Extract subject names based on file names
# Then we read the data (see more in Tutorial 1)
epoch_data = hmp.io.read_mne_data(subj_files, sfreq=sfreq, data_format='epochs',
verbose=False, subj_name=subj_names)#Turning verbose off for the documentation but it is recommended to leave it on as some output from MNE might be useful
Processing participant sample_data/eeg/participant3_epo.fif's epochs eeg
Processing participant sample_data/eeg/participant4_epo.fif's epochs eeg
Processing participant sample_data/eeg/participant5_epo.fif's epochs eeg
Processing participant sample_data/eeg/participant1_epo.fif's epochs eeg
Processing participant sample_data/eeg/participant2_epo.fif's epochs eeg
hmp.io.read_mne_data automatically reads the epoched data and converts it to an xarray dataset. Any metadata that has been saved along zith the epoched data is also kept (hence avoid too large metadata and only keep the important metadata).
[3]:
print(epoch_data)
<xarray.Dataset> Size: 38MB
Dimensions: (participant: 5, epoch: 200, channel: 30, sample: 320)
Coordinates:
* epoch (epoch) int64 2kB 0 1 2 3 4 5 6 ... 193 194 195 196 197 198 199
* channel (channel) <U3 360B 'Fp1' 'Fp2' 'AFz' 'F7' ... 'CPz' 'CP2' 'CP6'
* sample (sample) int64 3kB -20 -19 -18 -17 -16 ... 295 296 297 298 299
stim (participant, epoch) float64 8kB 1.0 nan 1.0 ... 2.0 1.0 2.0
resp (participant, epoch) object 8kB 'resp_left' ... 'resp_right'
RT (participant, epoch) float64 8kB 907.0 nan ... 468.0 350.0
cue (participant, epoch) object 8kB 'AC' nan 'AC' ... 'SP' 'AC'
movement (participant, epoch) object 8kB 'stim_left' ... 'stim_right'
trigger (participant, epoch) object 8kB 'AC/stim_left/resp_left' ......
* participant (participant) <U16 320B 'participant3_epo' ... 'participant2...
Data variables:
data (participant, epoch, channel, sample) float32 38MB 1.922 ......
Attributes:
sfreq: 100.0
lowpass: 35.0
highpass: 1.0
reference: None
n_trials: 920
tmin: -0.2
tmax: 2.99
1.1.2 Working with sensor location#

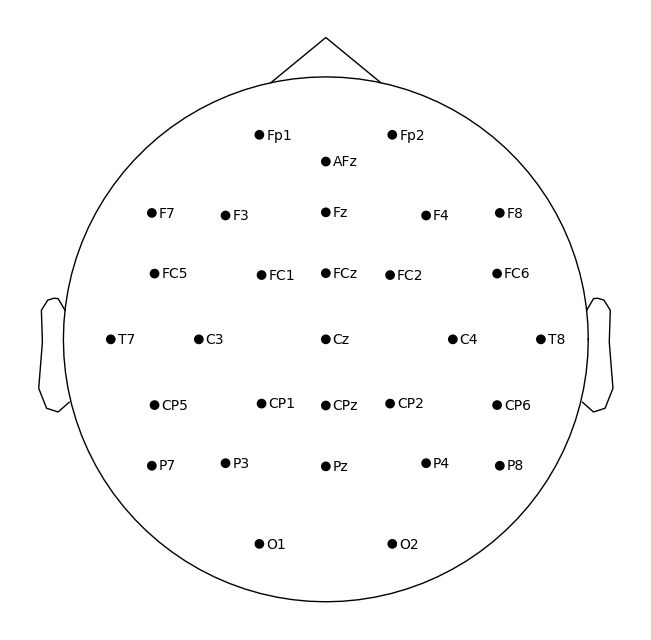

To be able to graphically represent how each transition event translates in the scalp topology we need to pass the info of the channel locations on the head.
[4]:
# The following code is just to illustrate channel positions
import mne
epoch = mne.read_epochs(subj_files[0])
epoch.plot_sensors(show_names=True);
When we have access to the mne data format and if the channel positions have been stored during the preprocessing step, the position of the electrode is contained in the info object from the file we read using mne. Hence we can first read any of the participants data (assuming the electrode position is the same) and directly pass that object to the plot_topo_timecourse . We first fit an HMP model (see tutorial 2) to illustrate the use of channel position
[5]:
# See the two next tutorials for more details on how to fit an HMP model and how to visualize the results.
preprocessed = hmp.transformers.ProjPCA(epoch_data, n_comp=6, interval_id='RT')#In this case the rts are contained in the dataframe column "RT"
pattern = hmp.patterns.HalfSine.create_expected(sfreq=epoch_data.sfreq)
trial_data = hmp.trialdata.TrialData.from_transformer(preprocessed, pattern=pattern.template)
model = hmp.models.EventModel(pattern, n_events=4)
_, estimates = model.fit_transform(trial_data)
900 positively defined intervalsbetween 0.01 and inf seconds.
Rejection summary:
0 trials rejected based on threshold of None
19 trials rejected based on interval limit of (0.01, inf)
1 trials detected with no interval (e.g. preprocessing or interval exceeding epoch))
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/transformers/base.py:135: UserWarning: Found intervals with a max value value of 2172.0, assuming intervals are in milliseconds and converting to seconds
warn(f"Found intervals with a max value value of {np.round(max_rt,2)}"
Estimating 4 events model with 1 starting point(s)

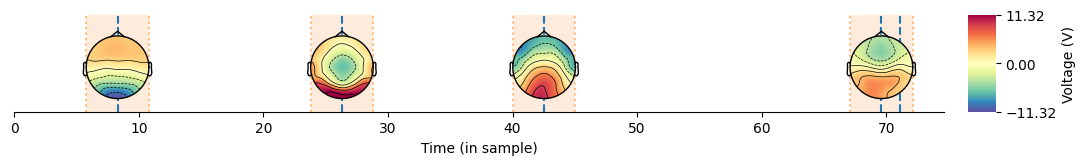

We then have the illustration of channel activities for each event:
[6]:
info = read_info(subj_files[0], verbose=False)
hmp.visu.plot_topo_timecourse(epoch_data, estimates, info)
1.2 Example without metadata#
If you haven’t stored the metadata along with the epoched data you can always provide a list of RTs and condition to parse the data, However you need to be sure that the order of the trials from which you take the info is the same as the EEG data. Here an example with the same data as previously:
For example we can extract the actual metadata from the epoched object. This is dataframe as you could have while reading behavioral data co-registered with the EEG.
[7]:
epoch = mne.read_epochs(subj_files[0])
epoch.metadata
[7]:
| stim | resp | RT | cue | movement | trigger | |
|---|---|---|---|---|---|---|
| 0 | 1 | resp_left | 907 | AC | stim_left | AC/stim_left/resp_left |
| 2 | 1 | resp_right | 1095 | AC | stim_left | AC/stim_left/resp_right |
| 3 | 2 | resp_left | 1370 | AC | stim_right | AC/stim_right/resp_left |
| 5 | 2 | resp_right | 907 | AC | stim_right | AC/stim_right/resp_right |
| 7 | 2 | resp_right | 891 | AC | stim_right | AC/stim_right/resp_right |
| ... | ... | ... | ... | ... | ... | ... |
| 195 | 1 | resp_right | 1763 | AC | stim_left | AC/stim_left/resp_right |
| 196 | 1 | resp_left | 676 | AC | stim_left | AC/stim_left/resp_left |
| 197 | 2 | resp_left | 0 | SP | stim_right | SP/stim_right/resp_left |
| 198 | 2 | resp_right | 649 | AC | stim_right | AC/stim_right/resp_right |
| 199 | 2 | resp_right | 862 | AC | stim_right | AC/stim_right/resp_right |
186 rows × 6 columns
In this case you can read the MNE epoched data, add the metadata for each participant, and save the data then re-read using the previous section
[8]:
import mne
import pandas as pd
# Example: assume 'behavior' is a DataFrame with columns ['RT', 'condition', ...] for each participant
# Here, we just extract the metadata from the EEG data as a placeholder
epochs_list = []
for eeg_file in subj_files:
epochs = mne.read_epochs(eeg_file, preload=True)
# Extract metadata or load your own behavioral data here
# For demonstration, we use the metadata from the epochs object if available
if epochs.metadata is not None:
metadata = epochs.metadata.copy()
else:
# If no metadata, create a dummy DataFrame (replace with your actual behavioral data)
n_trials = len(epochs)
metadata = pd.DataFrame({'RT': [1.0]*n_trials, 'condition': ['dummy']*n_trials})
epochs.metadata = metadata
epochs.save(eeg_file, overwrite=True)
2. Reading raw data#
The following is useful if you:
Do not have the behavioral data to use RTs and associated conditions
Haven’t epoched the data or just want to take a quick look at HMP models with raw data lying around
Nota bene: the data is assumed to be trial_data and only works with .bdf and .fif (also BIDS, see section 4)
In this case we will simulate EEG data with a structure close to actual recordings
[9]:
import numpy as np
from scipy.stats import gamma
from hmp import simulations
cpus = 2 # For multiprocessing, usually a good idea to use multiple CPUs as long as you have enough RAM
n_trials = 100 #Number of trials to simulate
sfreq = 500 #Sampling rate of the simulated data
##### Here we define the sources of the brain activity (event) for each trial
n_events = 4 #How many events to simulate
frequency = 10. #Frequency of the event defining its duration, half-sine of 10Hz = 50ms
amplitude = .2e-7 #Amplitude of the event in nAm, defining signal to noise ratio
shape = 2 #shape of the gamma distribution, with the defined means below it dictates the onset time probabilities
means = np.array([60, 150, 200, 100, 80])/shape #Mean duration of the between event times in ms
#Which source to activate for each event (see atlas when calling simulations.available_sources())
names = ['inferiortemporal-lh','caudalanteriorcingulate-rh','bankssts-lh','superiorparietal-lh','superiorparietal-lh']
sources = []
for source in zip(names, means): #One source = one frequency, one amplitude and a given by-trial variability distribution
sources.append([source[0], frequency, amplitude, gamma(shape, scale=source[1])])
# Function used to generate the data
file = simulations.simulate(sources, n_trials, cpus, 'dataset', overwrite=False, sfreq=sfreq, seed=0)
#load electrode position, specific to the simulations
info = simulations.positions()
#Recovering the events to epoch the data (in the number of trials defined above)
events = np.load(file[1])
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/simulations.py:219: UserWarning: /home/gabriel/ownCloud/projects/RUGUU/hmp/docs/source/notebooks/./dataset_raw.fif exists no new simulation performed
warn(f"{subj_file} exists no new simulation performed", UserWarning)
[10]:
#Recovering the events to epoch the data (in the number of trials defined above)
events = np.load(file[1])
#Visualising the raw simulated EEG data
import mne
raw = mne.io.read_raw_fif(file[0], preload=False, verbose=False)
raw.pick_types(eeg=True).plot(scalings=dict(eeg=1e-5), events=events, block=True);
This looks close to actual data, we’ll now illustrate how to read this data and prepare it for HMP analysis. The following code will read the raw data, epoch it from stimulus to response, and prepare it for HMP analysis.
2.1 Reading the data#
First we have to declare what trigger to epoch on
[11]:
stimulus_id = {'stimulus/dummy':1}#trigger 1 = stimulus, in real data this could be several e.g. {'stimulus/left': 1, 'stimulus/right':2} if you have several conditions for exmple
Then what trigger(s) define the response
[12]:
resp_id = {'response/dummy':6} # trigger 6 = response, in real data this could again be multiple e.g. {'response/left': 6, 'response/right':7}
** Note** when using the following code, the triggers in stimulus_id and response_id are expected to follow the convention 'stimulus/condition_name': trigger_number and 'response/condition_name': trigger_number. This is the convention used in the MNE-Python library, which is also used by HMP.
Next we can directly use the file list and feed it to the hmp.io.read_mne_data but first you have to decide on a number of parameters regarding EEG processing, see the following helper of the function
[13]:
import hmp
hmp.io.read_mne_data?
Signature:
hmp.io.read_mne_data(
pfiles: str | list = [],
event_id: dict | None = None,
resp_id: dict | None = None,
data_format: str = 'raw',
sfreq: float | None = None,
subj_name: list | None = None,
metadata: list | None = None,
events_provided: numpy.ndarray | None = None,
verbose: bool = True,
tmin: float = -0.2,
tmax: float = 5,
high_pass: float | None = None,
low_pass: float | None = None,
pick_channels: str | list = 'eeg',
reference: str | None = None,
bids_parameters: dict = {},
preprocessing_fn: Optional[Callable] = None,
dtype: Union[type[Any], numpy.dtype[Any], numpy._typing._dtype_like._SupportsDType[numpy.dtype[Any]], tuple[Any, Any], list[Any], numpy._typing._dtype_like._DTypeDict, str, NoneType] = <class 'numpy.float32'>,
) -> xarray.core.dataset.Dataset
Docstring:
Read EEG/MEG data format (.fif or .bdf) using MNE's integrated function.
Notes
-----
- Only EEG or MEG data are selected (other channel types are discarded).
- All times are expressed in seconds.
- If multiple files are provided in ``pfiles``, each participant's data is read and processed
sequentially.
- For non-epoched data: Reaction Times are only computed if the response trigger is in the
epoching window (determined by ``tmin`` and ``tmax``).
## Procedure:
If data is not already epoched:
- The data is filtered using the specified ``low_pass`` and ``high_pass`` parameters.
- If no events are provided, events are detected in the stimulus channel and only those with
IDs in ``event_id`` and ``resp_id`` are kept.
- Downsampling is performed if ``sfreq`` is lower than the data's sampling frequency.
- Epochs are created based on stimulus onsets (``event_id``)
and the ``tmin``/``tmax`` window.
Epochs with 'BAD' annotations are removed. Baseline correction is applied from
``tmin`` to stimulus onset (time 0).
Parameters
----------
pfiles : str or list of str
Path(s) to EEG files to read. Can be a single file path or a list of file paths.
If empty list, assumes bids format
event_id : dict, optional
Dictionary mapping condition names (keys) to event codes (values).
resp_id : dict, optional
Dictionary mapping response names (keys) to event codes (values).
data_format : str, default=epochs
What MNE compatible data type, can be 'epochs', 'raw' or 'bids'.
sfreq : float, optional
Desired sampling frequency for downsampling.
subj_name : list of str, optional
List of subject identifiers. If not provided, defaults to "S0", "S1", etc.
metadata : list of pandas.DataFrame, optional
List of metadata DataFrames corresponding to each participant.
events_provided : np.ndarray, optional
Array with 3 columns: [sample of the event, initial value of the channel, event code].
Used if automated event detection is not suitable.
verbose : bool, default=True
Whether to display MNE's messages.
tmin : float, default=-0.2
Start time (in seconds) relative to stimulus onset for epoching.
tmax : float, default=5
End time (in seconds) relative to stimulus onset for epoching.
high_pass : float, optional
High-pass filter cutoff frequency.
low_pass : float, optional
Low-pass filter cutoff frequency.
pick_channels : str or list, default="eeg"
Channels to retain. Use "eeg"/"meg" to keep only EEG/MEG channels
or provide a list of channel names.
reference : str, optional
Reference to use for EEG data. If None, the existing reference is kept.
bids_parameters: dict, optional
Bids root path ('root'), datatype ('datatype") to analyze.
A filter can also be applied to subjects, tasks and sessions
preprocessing_fn: callable, optional
A user defined function preprocessing the raw data before epoching
dtype: np.DTypeLike
Precision, use np.float32 or np.int64
Returns
-------
epoch_data : xarray.Dataset
An xarray Dataset containing the processed EEG/MEG data, events, channels, and participants.
Metadata and epoch indices are preserved. The chosen sampling frequency
is stored as an attribute.
File: ~/ownCloud/projects/RUGUU/hmp/hmp/io.py
Type: function
This is then an example call to the function based on previous hmp applications
[14]:
sfreq = 250 #at what sampling rate we want the data, downsampling to 250Hz just to show that we can use any SF
tmin, tmax = -.2, 2 #window size for the epochs, from 250ms before the stimulus up to 2 seconds after, data will be baseline corrected from tmin to 0
epoch_data = hmp.io.read_mne_data(file[0],
event_id=stimulus_id, # centering event
resp_id=resp_id, # event defining the RT or duration
data_format='raw',
subj_name='S0',
sfreq=sfreq,
events_provided = events, # events structure, usually not needed as real data have a trigger channel from which this is inferred
)
Processing participant /home/gabriel/ownCloud/projects/RUGUU/hmp/docs/source/notebooks/./dataset_raw.fif's raw eeg
Opening raw data file /home/gabriel/ownCloud/projects/RUGUU/hmp/docs/source/notebooks/./dataset_raw.fif...
Read a total of 1 projection items:
Average EEG reference (1 x 60) active
Range : 0 ... 86535 = 0.000 ... 173.070 secs
Ready.
Reading 0 ... 86535 = 0.000 ... 173.070 secs...
Downsampling to 250 Hz
Filtering raw data in 1 contiguous segment
Setting up low-pass filter at 81 Hz
FIR filter parameters
---------------------
Designing a one-pass, zero-phase, non-causal lowpass filter:
- Windowed time-domain design (firwin) method
- Hamming window with 0.0194 passband ripple and 53 dB stopband attenuation
- Upper passband edge: 80.65 Hz
- Upper transition bandwidth: 20.16 Hz (-6 dB cutoff frequency: 90.73 Hz)
- Filter length: 83 samples (0.166 s)
Creating epochs based on following event ID :[1 2 3 4 5 6]
Adding metadata with 3 columns
100 matching events found
Setting baseline interval to [-0.2, 0.0] s
Applying baseline correction (mode: mean)
Created an SSP operator (subspace dimension = 1)
1 projection items activated
Using data from preloaded Raw for 100 events and 2601 original time points (prior to decimation) ...
0 bad epochs dropped
End sampling frequency is 250 Hz
This is then the data ready to be used with hmp instances

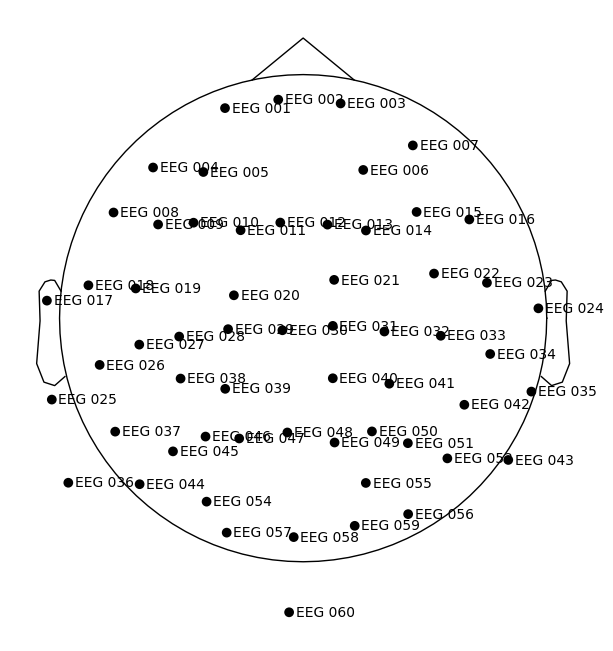

2.2 Working with sensor location#
In this case as in the first example with epoched data, we can simply call the info object of one of the file to use the positions of the electrodes (note that this time the positions are recorded and not assumed).
[15]:
epoch = mne.io.read_raw(file[0])
epoch.plot_sensors(show_names=True);
[16]:
# See the two next tutorials for more details on how to fit an HMP model and how to visualize the results.
lower_limit_rt, upper_limit_rt = .2, 2 #lower and upper limit for the RTs, all values outside of this range are discarded, choose carefully
preprocessed = hmp.transformers.ProjPCA(epoch_data,
n_comp=6,
min_duration=lower_limit_rt,
max_duration=upper_limit_rt,
reject_threshold=1e-4,#Reject if more than 100microV between stimulus and response)
)
pattern = hmp.patterns.HalfSine.create_expected(sfreq=epoch_data.sfreq)
trial_data = hmp.trialdata.TrialData.from_transformer(preprocessed, pattern=pattern.template)
model = hmp.models.EventModel(pattern, n_events=4)
_, estimates = model.fit_transform(trial_data)
100 positively defined intervalsbetween 0.2 and 2 seconds.
Rejection summary:
0 trials rejected based on threshold of 0.0001
0 trials rejected based on interval limit of (0.2, 2)
0 trials detected with no interval (e.g. preprocessing or interval exceeding epoch))
Estimating 4 events model with 1 starting point(s)
[17]:
from mne.io import read_info
info = read_info(file[0], verbose=False)

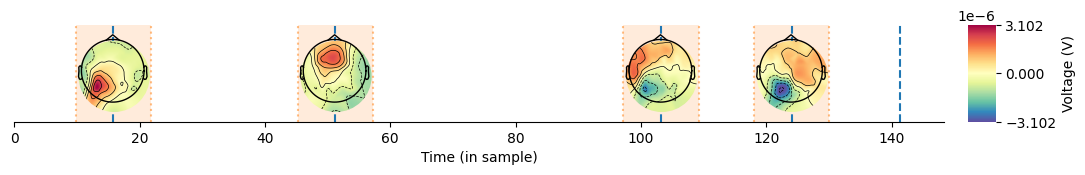

hmp.visu.plot_topo_timecourse(epoch_data, estimates, info)
3. Data already epoched from stimulus to response#
In case you prefer to do your own stimulus-response epoching of your data, you can use the output to build an HMP data object as well.
In this case, you will create an HMP object for each subject, concatenate these in a list, and finally concatenate as xarray. Each subject matrix need to have shape epochs X channels X samples, where non-existing datapoints (i.e. after the response) have the value NaN.
Assuming that the data were stored for each subject in a .fif file, this the required code:
import numpy as np
import mne
import hmp
import xarray as xr
#subjects
subs = np.array(['77032','77038','77044'])
#list containing subject specific HMP objects
epoch_data = []
#for each subject:
for subj in subs:
#load data
#note that these data were trial_data such that epochs._data has samples set to NaN after the response
epochs = mne.read_epochs('sample_data/eeg_stim-resp-epoched/epochs_stim-to-resp-' + subj + '_epo.fif', preload=True, verbose=False)
#make into hmp format and append to epoch_data
epoch_data.append(hmp.utils.hmp_data_format(epochs.get_data(), epochs.info['sfreq'], None, channels = epochs.ch_names, metadata = epochs.metadata))
#concatenate into xarray
epoch_data = xr.concat(epoch_data, dim = xr.DataArray(subs, dims='participant'), fill_value={'event':'', 'data':np.nan})
#save
epoch_data.to_netcdf('sample_data/eeg_stim-resp-epoched/epoched_for_hmp.nc')
4. Reading BIDS data#
Given the developments of the BIDS data structure, HMP comes with a function to read BIDS data and convert it to the HMP format. The BIDS format is particularly appropriate given that events are typically clearly defined along the E/MEG recordings, allowing for an easy reconstruction of the conditions for each trial. Check out the different tutorials in MATLAB or python on how to turn your data into BIDS.
Here below we illustrate how to prepare BIDS data from the ERP-core dataset transformed to BIDS (see https://osf.io/3zk6n). First we need to install the mne_bids package if not already installed. You can do this via pip: pip install mne_bids Then we download the data (1.8 GB!)
[18]:
# ERP CORE BIDS dataset
# We'll use mne_bids to download and organize the first 5 participants' data
import os
from zipfile import ZipFile
import requests
# Download the ERP CORE P3 dataset (if not already present)
erp_core_url = "https://osf.io/download/3zk6n/"
zip_path = "sample_data/ERP_CORE_P3.zip"
extract_dir = "sample_data/"
if not os.path.exists(zip_path):
print("Downloading ERP CORE dataset...")
r = requests.get(erp_core_url, stream=True)
with open(zip_path, "wb") as f:
for chunk in r.iter_content(chunk_size=8192):
f.write(chunk)
print("Extracting ERP CORE dataset...")
with ZipFile(zip_path, "r") as zip_ref:
zip_ref.extractall(extract_dir)
Downloading ERP CORE dataset...
Extracting ERP CORE dataset...
And we read the data as in section 2 except that we specify the BIDS parameters to read the data from the BIDS dataset. Note that this requires the BIDS dataset to be structured correctly, with the events and metadata stored in the appropriate files.
[19]:
import hmp
sfreq = 250 #at what sampling rate we want the data, downsampling to 250Hz just to show that we can use any SF
tmin, tmax = -.2, 2 #window size for the epochs, from 250ms before the stimulus up to 2 seconds after, data will be baseline corrected from tmin to 0
lower_limit_rt, upper_limit_rt = .2, 2 #lower and upper limit for the RTs, all values outside of this range are discarded, choose carefully
epoch_data = hmp.io.read_mne_data([],
data_format='bids',
tmin=tmin, tmax=tmax,
sfreq=sfreq,
bids_parameters={
'bids_root': 'sample_data/ERP_CORE',
'task': 'P3',
'datatype': 'eeg',
'session': 'P3'
},
reference='average',# VERY IMPORTANT, use the average as reference, other type of reference (except REST) can give weird topographies
verbose=False
)
Processing participant sub-018's bids eeg
Downsampling to 250 Hz
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Data file name in EEG.data (sub-018_task-P3_eeg.fdt) is incorrect, the file name must have changed on disk, using the correct file name (sub-018_ses-P3_task-P3_eeg.fdt).
data = mne_bids.read_raw_bids(
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Unable to map the following column(s) to to MNE:
handedness: right
data = mne_bids.read_raw_bids(
Processing participant sub-019's bids eeg
Downsampling to 250 Hz
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Data file name in EEG.data (sub-019_task-P3_eeg.fdt) is incorrect, the file name must have changed on disk, using the correct file name (sub-019_ses-P3_task-P3_eeg.fdt).
data = mne_bids.read_raw_bids(
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Unable to map the following column(s) to to MNE:
handedness: left
data = mne_bids.read_raw_bids(
Processing participant sub-015's bids eeg
Downsampling to 250 Hz
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Data file name in EEG.data (sub-015_task-P3_eeg.fdt) is incorrect, the file name must have changed on disk, using the correct file name (sub-015_ses-P3_task-P3_eeg.fdt).
data = mne_bids.read_raw_bids(
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Unable to map the following column(s) to to MNE:
handedness: right
data = mne_bids.read_raw_bids(
Processing participant sub-017's bids eeg
Downsampling to 250 Hz
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Data file name in EEG.data (sub-017_task-P3_eeg.fdt) is incorrect, the file name must have changed on disk, using the correct file name (sub-017_ses-P3_task-P3_eeg.fdt).
data = mne_bids.read_raw_bids(
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Unable to map the following column(s) to to MNE:
handedness: right
data = mne_bids.read_raw_bids(
Processing participant sub-016's bids eeg
Downsampling to 250 Hz
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Data file name in EEG.data (sub-016_task-P3_eeg.fdt) is incorrect, the file name must have changed on disk, using the correct file name (sub-016_ses-P3_task-P3_eeg.fdt).
data = mne_bids.read_raw_bids(
/home/gabriel/ownCloud/projects/RUGUU/hmp/hmp/io.py:345: RuntimeWarning: Unable to map the following column(s) to to MNE:
handedness: right
data = mne_bids.read_raw_bids(
And we can use the data as in the other cases
[20]:
# See the two next tutorials for more details on how to fit an HMP model and how to visualize the results.
preprocessed = hmp.transformers.ProjPCA(epoch_data,
n_comp=6,
min_duration=lower_limit_rt,
max_duration=upper_limit_rt,
reject_threshold=1e-4,#Reject if more than 100microV between stimulus and response)
)
pattern = hmp.patterns.HalfSine.create_expected(sfreq=epoch_data.sfreq)
trial_data = hmp.trialdata.TrialData.from_transformer(preprocessed, pattern=pattern.template)
model = hmp.models.EventModel(pattern, n_events=4)
_, estimates = model.fit_transform(trial_data)
1000 positively defined intervalsbetween 0.2 and 2 seconds.
Rejection summary:
88 trials rejected based on threshold of 0.0001
0 trials rejected based on interval limit of (0.2, 2)
0 trials detected with no interval (e.g. preprocessing or interval exceeding epoch))
Estimating 4 events model with 1 starting point(s)
For the electrode position we can build a montage based on the names of the electrodes in the dataset
[21]:
# Rename FP1 and FP2 channels to Fp1 and Fp2
epoch_data = epoch_data.assign_coords(
channel=[
ch.replace("FP1", "Fp1").replace("FP2", "Fp2") if ch in ["FP1", "FP2"] else ch
for ch in epoch_data.channel.values
]
)
montage = mne.channels.make_standard_montage('standard_1020')
# Keep only channels in the montage that are in epoch_data.channel
keep_chs = [ch for ch in montage.ch_names if ch in list(epoch_data.channel.values)]
# Create a new montage with only the desired channels
montage = mne.channels.make_dig_montage(
{ch: montage.get_positions()['ch_pos'][ch] for ch in keep_chs},
coord_frame=montage.get_positions()['coord_frame']
)
info = mne.create_info(list(epoch_data.channel.values), sfreq, ch_types='eeg')
info = info.set_montage(montage, verbose=False)

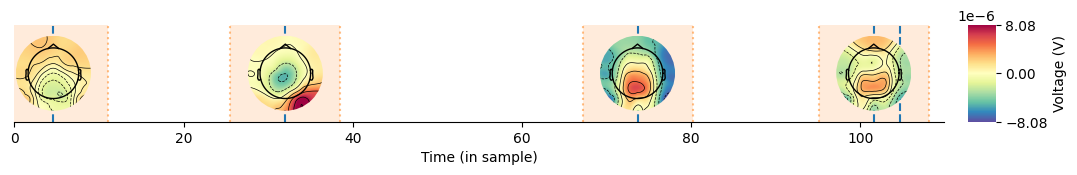

hmp.visu.plot_topo_timecourse(epoch_data, estimates,info)
/tmp/ipykernel_138700/1064243124.py:19: RuntimeWarning: Fiducial point nasion not found, assuming identity unknown to head transformation
info = info.set_montage(montage, verbose=False)
Note that in this case the data was not trial_data so still contains large artifacts (e.g. blinks).
5. Reading alternative data formats#
If none of these case are suitable to you then it’ll require quite a lot of work as we cannot account for the multiple ways EEG data can be acquired and processed. To avoid such hassle we advise to either re-read the data in MNE and use the functions in 1. or convert the dataset to BIDS and use the dunctions in 4. If none of these would be suitable, we provide here an example that we made for the P3 task of the ERP CORE dataset. This code reads the data from the P3 task, processes it, and saves it in an MNE format that can then be used as in 1.1. The code uses read the EEG epochs with MNE, sets channel types, applies an average reference to the EEG data and re-shape the metadata. It also translates event codes into a more readable format and saves the processed epochs in a new file.
import os
import re
import mne
import numpy
import pandas as pd
from concurrent.futures import ProcessPoolExecutor
# Define the base path where the numbered folders are located
base_path = 'P3 All Data and Scripts/'
base_path = os.path.expanduser(base_path)
# Define the channel types to be set
channel_types = {
'HEOG_left': 'eog',
'HEOG_right': 'eog',
'VEOG_lower': 'eog',
'(corr) HEOG': 'eog',
'(corr) VEOG': 'eog',
'(uncorr) HEOG': 'eog',
'(uncorr) VEOG': 'eog'
}
mapping_scheme = {
11: ['A', 1, 'A', 1],
21: ['B', 2, 'A', 1],
31: ['C', 3, 'A', 1],
41: ['D', 4, 'A', 1],
51: ['E', 5, 'A', 1],
12: ['A', 1, 'B', 2],
22: ['B', 2, 'B', 2],
32: ['C', 3, 'B', 2],
42: ['D', 4, 'B', 2],
52: ['E', 5, 'B', 2],
13: ['A', 1, 'C', 3],
23: ['B', 2, 'C', 3],
33: ['C', 3, 'C', 3],
43: ['D', 4, 'C', 3],
53: ['E', 5, 'C', 3],
14: ['A', 1, 'D', 4],
24: ['B', 2, 'D', 4],
34: ['C', 3, 'D', 4],
44: ['D', 4, 'D', 4],
54: ['E', 5, 'D', 4],
15: ['A', 1, 'E', 5],
25: ['B', 2, 'E', 5],
35: ['C', 3, 'E', 5],
45: ['D', 4, 'E', 5],
55: ['E', 5, 'E', 5]
}
# Function to translate ecode using the mapping scheme
def translate_ecode(ecode, mapping_scheme):
return mapping_scheme.get(ecode, [None] * 6)
# Iterate over the numbered folders
def process_folder(folder):
folder_path = os.path.join(base_path, folder)
# Read the EEG epochs
epochs_path = os.path.join(folder_path, f'{folder}_P3_shifted_ds_reref_ucbip_hpfilt_ica_corr_cbip_elist_bins_epoch_interp_ar.set')
epochs = mne.read_epochs_eeglab(epochs_path)
# Set the channel types
epochs.set_channel_types(channel_types)
# Pick only EEG channels
epochs = epochs.pick_types(eeg=True)
# Read the event list file (if needed)
event_list_path = os.path.join(folder_path, f'{folder}_P3_Eventlist_RTs.txt')
with open(event_list_path, 'r') as file:
lines = file.readlines()
# Find the line where the actual data starts
data_start = 0
for i, line in enumerate(lines):
if line.startswith('# item'):
data_start = i + 2 # data starts two lines after the header line
break
# Process the data lines into a list of dictionaries
data = []
for line in lines[data_start:]:
if not line.strip(): # Skip empty lines
continue
# Split line by whitespace
split_line = line.split()
# Combine all parts after the 10th element (index 9) into one field
combined_last_field = ' '.join(split_line[10:])
# Extract digits from the brackets
digits_in_brackets = re.findall(r'\d+', combined_last_field)
# Append the first 10 elements and the list of digits
data.append({
'item': split_line[0],
'bepoch': split_line[1],
'ecode': split_line[2],
'label': split_line[3],
'onset': split_line[4],
'diff': split_line[5],
'dura': split_line[6],
'b_flags': split_line[7],
'a_flags': split_line[8],
'enable': split_line[9],
'bin': digits_in_brackets
})
# MNE read trigger description
mapping_dict = epochs.event_id
# Create the DataFrame
df = pd.DataFrame(data)
df['rt'] = df['diff'].shift(-1)
metadata = df
metadata.bepoch = metadata.bepoch.astype(int)
metadata.ecode = metadata.ecode.astype(int)
metadata['rt'] = metadata['rt'].astype(float)
arr = epochs.events.copy()
# Invert keys and values of mapping_dict, keeping only the three-digit code in parentheses
inverted_mapping = {v: k.split('(')[1].split(')')[0] for k, v in mapping_dict.items() if '(' in k}
# Replace last column using inverted mapping dictionary
arr[:, -1] = [int(inverted_mapping.get(row[2])) for row in arr]
# Find indices where metadata_ecode matches arr_last_column
indices = []
filtered_metadata = metadata.copy()
i = 0
for value in arr[:,-1]:
while i < len(metadata.ecode) and metadata.ecode.values[i] != value:
i += 1
indices.append(i)
i += 1
assert (arr[:,-1] == metadata.ecode.values[indices]).all()
# Create a DataFrame from metadata_ecode and translate using the mapping scheme
translated_columns = ['target', 'num1', 'stimulus', 'num2', '_','__']
metadata[translated_columns] = metadata['ecode'].apply(lambda x: pd.Series(translate_ecode(x, mapping_scheme)))
metadata['Trial type'] = (metadata['target'] == metadata['stimulus']).astype(str).replace({'True': 'Rare', 'False': 'Frequent'})
epochs.metadata = metadata.iloc[indices]
# Remove epoch discarded during AR
filtered_metadata = epochs.metadata[epochs.metadata['bin'].apply(lambda x: len(x) > 1)]
epochs_clean = epochs[filtered_metadata.index]
epochs_clean.set_eeg_reference('average')
epochs_clean.apply_baseline()
epochs_clean.save(f'P3/{folder}_reref_epo.fif', overwrite=True)
print(f'Saved {folder}')
# Get the list of folders to process
folders = [folder for folder in os.listdir(base_path) if folder.isdigit()]
# Use ProcessPoolExecutor to parallelize the processing
with ProcessPoolExecutor() as executor:
executor.map(process_folder, folders)
